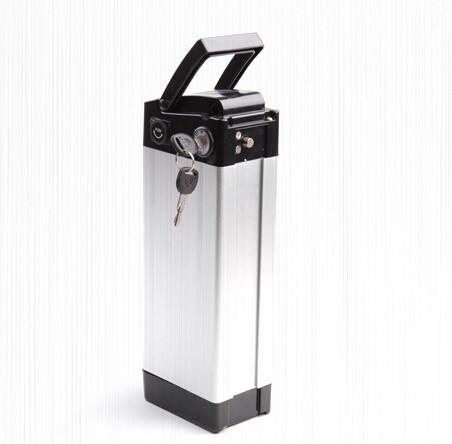

    10A Electric Bicycle Parts 36V Electric Bicycle Lithium Battery for electric bike

    Ask Lasest Price
    Brand Name : CHAOWEI
    Model Number : BN3610AB
    Certification : CE, UL, CCC
    Payment Terms : T/T, L/C
    Supply Ability : 6000 pcs per month
    Delivery Time : 25 days - 30 days
    Price : Negotiation
    • Product Details
    • Company Profile

    10A Electric Bicycle Parts 36V Electric Bicycle Lithium Battery for electric bike

    10A Electric Bicycle Parts 36V Electric Bicycle Lithium Battery for electric bike​

    Quick Details


    • Model Number: BN3610AB
    • Composed Type: Other
    • Type: Li-Ion
    • Components: Lithium
    • Size: 390mm*106mm*76mm
    • Voltage: 36V
    • Weight: 3.4KGS
    • Nominal Capacity: 10A
    • Application: Electric Bicycle
    • Cycle Life: 1200 cycle at 80% DOD
    • Material: Li(NiCoMn)O2
    • Safety: No fire risks

    Features


    Modularized design and pefectly compatible to the electric bicycles which are using traditional VRLA batteries
    'Green " and environment-friendly, no pollution to the environment during production and normal usage
    Stable structure and simplified production process enables mass production and easy maintenance
    Completely new protection design of water-proof, fire-proof, shock-resistance enable high safety
    Professional protection module and BMS ensures the battery pack to be protected perfectly
    High weight and measurement specific energy ensures the battery pack extremely long-voyage ability
    Super long life supported by innovative technologies, high quality material and strict manufacturing control

    Applications


    1. Electric Bicycle and Scooter

    2. Electric Tricycles and electric vehicles


    Specifications


    Battery Model No.

    BN3610AB

    Material

    MnNiCo Ternary Material + LiMn2O4

    Nominal Voltage (V)

    36V

    Nominal Capacity (C2, 25℃ )

    10Ah

    Battery Pack Dimension (mm)

    390mm X 106mm X 76mm (L X W X H)

    Nominal Weight (Kg)

    3.4 Kgs ± 0.1

    Continuous Charge Current (A)

    2A - 4A

    Charge Time (hr)

    3h - 6h

    Discharge Cut-off Voltage (V)

    ≥ 30V

    Continuous Discharge Current (A)

    ≤ 10A

    Pulse Discharge Current (A)

    ≤ 15A

    Cycle Life at80% D.O.D.

    ≥ 1200 Cycles

    Capacity Retention Rate at 0℃

    ≥ 90%

    Self-Discharge Rate (25℃)

    ≤ 5% per month

    Temperature Characteristic

    Charging

    -20℃ - 40℃

    Discharging

    -20℃ - 40℃

    Storage

    -20℃ - 40℃
