    60V20A Lithium Ion Battery Pack 7.1 Kgs Lithium Battery For Electric Scooter

    Ask Lasest Price
    Brand Name : CHAOWEI
    Model Number : BN6020 LE
    Certification : CE, UL, CCC
    Payment Terms : T/T, L/C
    Supply Ability : 6000 pcs per month
    Delivery Time : 25 days - 30 days
    Price : Negotiation
    • Product Details
    • Company Profile

    60V20A Lithium Ion Battery Pack 7.1 Kgs Lithium Battery For Electric Scooter

    60V20A Lithium Ion Battery Pack 7.1 Kgs Lithium Battery For Electric Scooter

    Quick Details


    • Type: Lithium ion pack
    • Nominal Voltage: 60V
    • Size: 290*190*125mm
    • Nominal Capacity: 60V
    • Nominal Capacity at 2Hr rate: 20Ah
    • Nominal Capacity at 20Hr Rate: 24Ah
    • Single battery weight: 9.1Kgs
    • Cycle life of 60% DOD: 1500 cycles

    Features


    'Silver Fish' design, elegance and portable

    'Green" and environment-friendly, no pollution to the environment during production and normal usage

    Stable structure and simplified production process enables mass production and easy maintenance

    Completely new protection design of water-proof, fire-proof, shock-resistance enable high safety

    Professional protection module and BMS ensures the battery pack to be protected perfectly

    High weight and measurement specific energy ensures the battery pack extremely long-voyage ability

    Super long life supported by innovative technologies, high quality material and strict manufacturing control


    Applications


    60V Electric Scooters and Electric Motorcycles


    Specifications


    Battery Model No.

    BN6020LC

    Material

    MnNiCo Ternary Material + LiMn2O4

    Nominal Voltage (V)

    60V

    Nominal Capacity (C2, 25℃ )

    20Ah

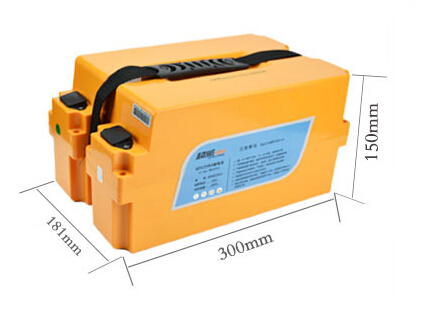

    Battery Pack Dimension (mm)

    300mm X 181mm X 150mm (L X W X H)

    Nominal Weight (Kg)

    10.36Kgs

    Continuous Charge Current (A)

    4A

    Charge Time (hr)

    4h - 6h

    Discharge Cut-off Voltage (V)

    ≥ 49V

    Continuous Discharge Current (A)

    ≤ 15A

    Pulse Discharge Current (A)

    ≤ 25A

    Cycle Life at 100% D.O.D.

    ≥ 700 Cycles

    Capacity Retention Rate at 0℃

    ≥ 90%

    Self-Discharge Rate (25℃)

    ≤ 5% per month

    Temperature Characteristic

    Charging

    -20℃ - 40℃

    Discharging

    -20℃ - 40℃

    Storage

    -20℃ - 40℃


    Size
